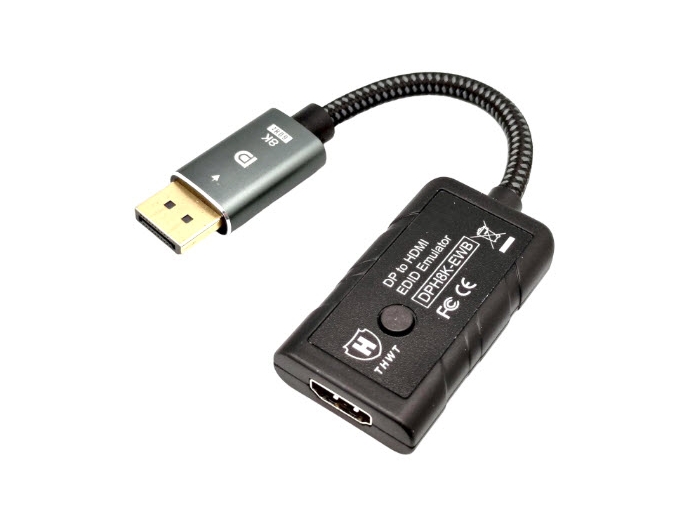

《 Introduction 》
The DisplayPort to HDMI EDID Emulator supports EDID copying and emulation to maintain stable connections with splitters, switchers,extenders, or headless setups, ensuring consistent display output even when monitors are disconnected or powered off.
《 Features 》
1. Uni-directional adapter that allows you to connect your DisplayPort source device to a HDMI display.
2. Support DisplayPort 1.4 and 4 lanes
3. Compliant with DisplayPort 1.4, data rate up to 32.4 Gbps ( 8.1 Gbps per lane ).
4. Compliant with HDMI 2.1, data rate up to 48 Gbps ( 12 Gbps per lane ).
5. Compliant with HDCP 1.4 / 2.2 / 2.3.
6. Supports HDCP Pass-through ( not removal ) for secure content delivery.
7. Supports resolutions up to 8K@60Hz / 4K@120Hz YCbCr 4:4:4.
8. Supports SCDC handshaking with 10x, 40x, and FRL modes, enabling 8K resolution and hot-plug functionality.
9. Supports headless operation no monitor connection required.
10. Pre-programmed with many standard resolutions with native set to 8K@60Hz ( internal EDID ) / 4K@120Hz ( external EDID ).
The selectable resolutions are dependent on the computer's graphic card.
12. Default EDID supports 2.1-channel audio. Copied EDID can support higher audio formats ( e.g., 5.1 or 7.1 channels ) based on
the display's capabilities.
13. A single button switches between internal EDID ( 8K@60Hz 4:4:4 ) and external EDID ( 4K@120Hz 4:4:4 or copied EDID ) modes.
Holding the button for 3 seconds activates EDID copy mode to store the connected display's EDID ( save the latest EDID ).
Holding the button for 10 seconds to restore the factory default settings.
14. LED indicator provide signal status information ( internal EDID - Green LED ) / ( external EDID - Blue LED ).
15. Compact size for easy installation.
16. Supports Plug-n-Play. No driver, software required.
17. No external power supply required, powered by DisplayPort source device.
18. Ideal for resolving signal handshaking problems between a source and a display.
《 Common Applications 》

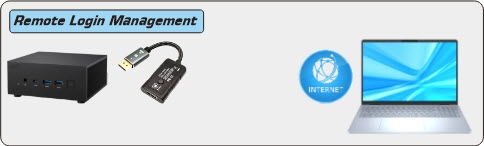

Enables virtual display detection for remote desktop access without a physical monitor, saving energy and simplifying setups.

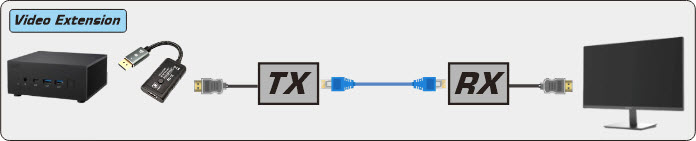

Ensures stable EDID correspondence for extenders, maintaining consistent audio/video output.
Prevents screen arrangement changes during reboots or monitor power cycles.

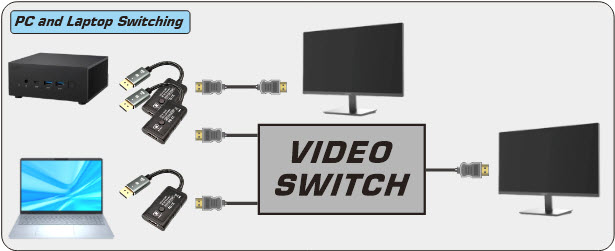

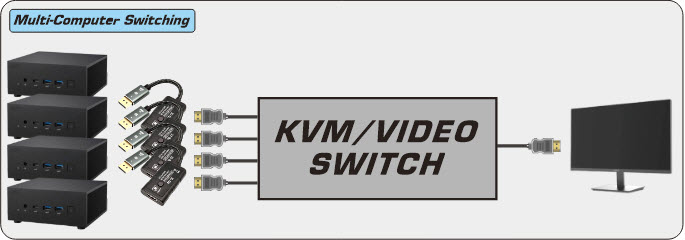

Stabilizes video output during switching, ensuring EDID-based display output.
Ensures consistent EDID detection, preventing display anomalies or system logouts.

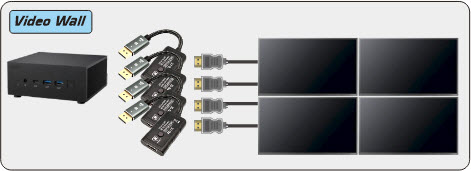

Maintains EDID detection for each HDMI output, ensuring stable window arrangements and accurate aspect ratios.

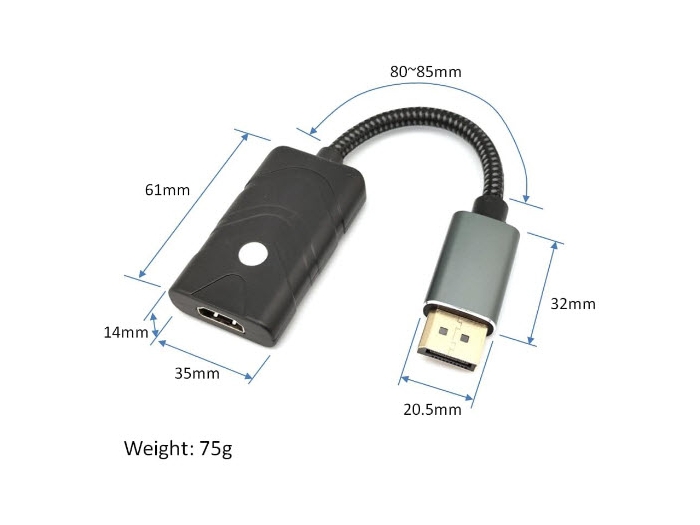

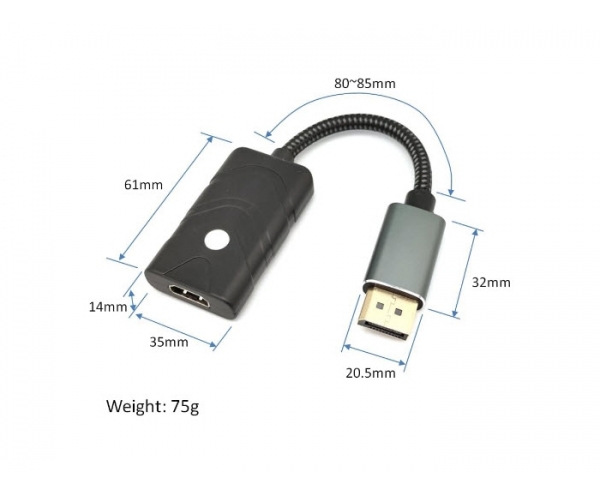

《 Specification 》
|
DisplayPort 1.4 to HDMI 2.1 EDID Emulator |
|
|
Model No. |
DPH8K-EWB |
|
Description |
DisplayPort 1.2 to HDMI 2.0 EDID Emulator |
|
Input Interface |
DisplayPort ( Male ) |
|
Output Interface |
HDMI Type A ( Female ) |
|
Resolution ( Max. ) |
8K@60Hz / 4K@120Hz ( YCbCr 4:4:4 ) |
|
Operating Temperature / Humidity |
0 to 40°C / 20% to 80% RH ( Non-condensing ) |
|
Storage Temperature / Humidity |
-20 to 60°C / up to 95% RH ( Non-condensing ) |
|
Weight |
75g |
|
Power Supply |
via DisplayPort source device |
