《 Introduction 》

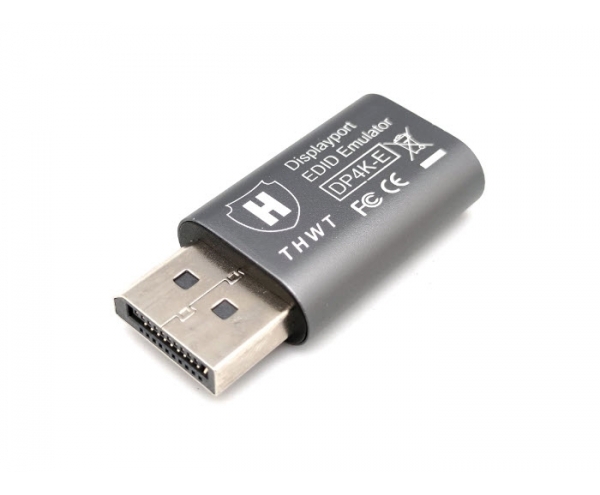

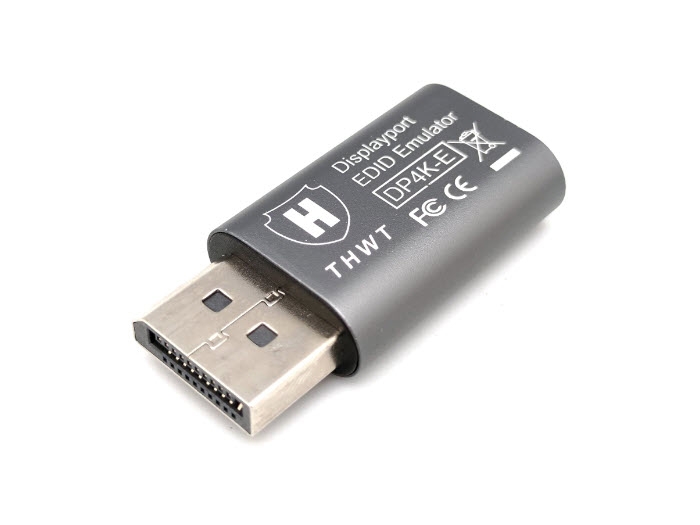

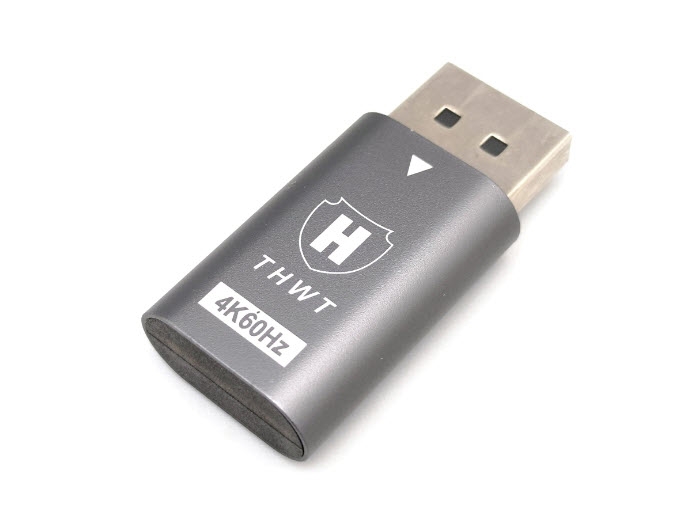

The DP4K-E is a compact, professional-grade DisplayPort 1.2 EDID Headless Emulator designed for reliable 4K@60Hz output without requiringa physical monitor to remain connected.
Featuring a factory-preset EDID of 3840×2160@60Hz ( 4:4:4 chroma, 8-bit color depth, SDR color space ), it allows your PC or server to detect
a permanent high-resolution 4K display even when no monitor is attached.
Perfect for remote desktop software ( TeamViewer, AnyDesk, RDP ) and headless server management.
《 Features 》
1. Support DisplayPort 1.2.
2. True 4K@60Hz simulation — supports full 3840×2160@60Hz resolution ( actual output depends on your device's specifications ).
3. Powered directly by the DisplayPort port — no external power supply needed.
4. Ultra-compact and lightweight — 43 × 21 × 10mm and only 12g for easy installation anywhere.
5. Plug & play simplicity — no drivers, no software, hot-plug stable.
6. Premium Build & Reliability: Aluminum alloy housing, fabric-braided cable – built for 24/7 professional use.
7. Rear green LED indicator — illuminates upon connection and power-on to confirm activation.
8. Ideal for reliable 4K@60Hz output without requiring a physical monitor to remain connected.
《 Common Applications 》

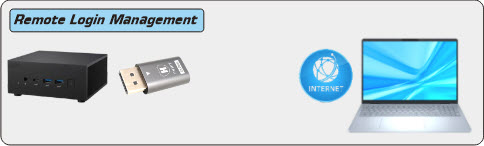

Enables virtual display detection for remote desktop access without a physical monitor, saving energy and simplifying setups.
《 Specification 》
|
DisplayPort 1.2 EDID Headless Emulator |
|
|
Model No. |
DP4K-E |
|
Description |
DisplayPort 1.2 EDID Headless Emulator |
|
Input Interface |
DisplayPort ( Male ) |
|
Resolution ( Max. ) |
4K@60Hz ( YCbCr 4:4:4 ) |
|
Operating Temperature / Humidity |
0 to 40°C / 20% to 80% RH ( Non-condensing ) |
|
Storage Temperature / Humidity |
-20 to 60°C / up to 95% RH ( Non-condensing ) |
| Dimension ( WxDxH ) | 43x21x10mm |
|
Weight |
12g |
|
Power Supply |
via DisplayPort source device |
